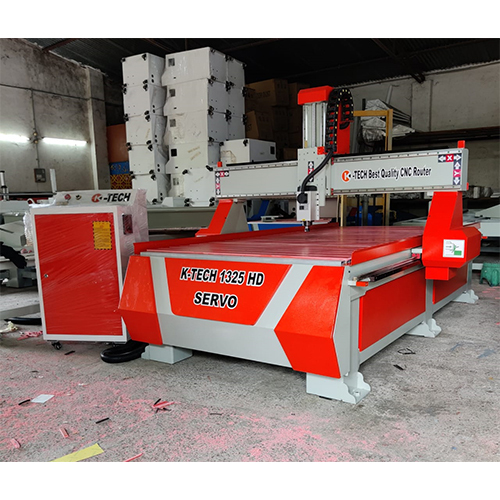

Advertising CNC Router

Name: Advertising CNC Router
Brand: K TECH CNC
Price: 375000.00 INR
Availability: InStock

Price 375000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Set

Advertising CNC Router Specification

Product Type
Advertising CNC Router

General Use
Sign making, Advertising board cutting, Acrylic, MDF, PVC, Wood, Plastic engraving and cutting

Material
Aluminum, Steel, Stainless Steel, PVC, MDF, Acrylic, Wood

Type
CNC Router Machine

Capacity
Large scale cutting and engraving

Weight (kg)
1100 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
3.5 kW

Rigidity
High

Voltage
220V/380V

Motor
Stepper Motor

Table Size
1300 x 2500 mm

Spindle Speed
0-24000 rpm

Axial Choice
3 Axis

Dimension (L*W*H)
3200 x 2000 x 1700 mm

Feature
High precision, Stable performance, User-friendly interface, Low maintenance

Color
Blue & White

Command Code
G Code, HPGL, U00, mmg, plt

Repeatability
±0.05 mm

Spindle Power
3.0 kW

Drive System
Micro stepper drive

Router Bit Diameter
3.175/4/6/12.7 mm

Operating System
Windows compatible

Cooling Method
Water-cooled spindle

Control System
DSP/NC Studio/Mach3 optional

Transmission
Rack and pinion on X/Y axis, Ball screw on Z axis

Software Compatibility
Type3, ArtCAM, Ucancam, JD Paint, Aspire

Max Travel Speed
35 m/min

Working Environment
0-45°C, Humidity 30%-75% No condensation

About Advertising CNC Router

Advertising CNC Machine provided by us, ensures about continuing engraving breaks of point and blade. This machine is known for its unique features like outstanding performance, easy installation, smooth operation, longevity of machine and safe to use. This machine is highly appreciated by our clients, in the market for its high working. Advertising CNC Machineenhances the excellence of engraving but freely cuts too. This machine is very cost effective and safe to use. This machine can be easily purchased by our customers, at affordable rates, as per their requirements.

Cutting-Edge Engineering for Precision

The CNC Router employs a rack and pinion drive on its X and Y axes, while the Z axis utilizes a ball screw for enhanced accuracy. This combination guarantees smooth operation and consistent results, crucial for detailed graphics in sign making and advertising board fabrication.

User-Friendly Controls for Simplified Operation

Choose from leading control systems-DSP, NC Studio, or Mach3-to match your workflow preferences. The intuitive interface streamlines setup and operation, letting users produce high-quality engravings and cuts quickly, even with varying experience levels among staff.

Designed for Demanding Professional Environments

Built with industrial-grade materials and a high-rigidity frame, this router supports 24/7 production. With powerful water-cooled spindle and support for various router bit diameters, it accommodates a broad range of advertising materials such as plastics, metals, and wood.

FAQ's of Advertising CNC Router:

Q: How do I operate the CNC Router for complex advertising board designs?

A: Simply prepare your design using compatible software (Type3, ArtCAM, Ucancam, JD Paint, Aspire), export your project in G Code, HPGL, U00, mmg, or plt format, and upload it to the router via the chosen control system (DSP, NC Studio, or Mach3). Use the intuitive interface to select parameters, initiate the job, and monitor progress.

Q: What materials can this CNC Router effectively cut and engrave?

A: The machine handles a variety of materials including aluminum, steel, stainless steel, PVC, MDF, acrylic, and all types of wood and plastic. Its robust spindle and large table size make it suitable for diverse applications in advertising and signage.

Q: When is maintenance required for this CNC Router, and how intensive is it?

A: Routine maintenance, such as checking the water cooling system and cleaning the table, should be performed weekly or after extended use. Thanks to its stable design and high-quality components, the machine offers low-maintenance operation suitable for busy workshops.

Q: Where can this CNC Router be installed and operated?

A: Install the router in an indoor workspace with temperatures between 0-45C and humidity ranging from 30% to 75% without condensation. It requires a 220V or 380V power supply and ample space for its dimensions (3200 x 2000 x 1700 mm).

Q: What is the process for switching between different router bit diameters?

A: Stop the spindle, unlock the collet, insert the desired bit (supported diameters: 3.175/4/6/12.7 mm), and securely tighten. Restart the spindle and calibrate if necessary, ensuring precise cutting and engraving for various project requirements.

Q: How does using this CNC Router benefit advertising manufacturing businesses?

A: Businesses gain from high precision (0.05 mm), rapid production speeds (up to 35 m/min), and versatility in material compatibility. The user-friendly interface and sturdy build minimize downtime and maintenance costs, optimizing workflow and maximizing productivity.
