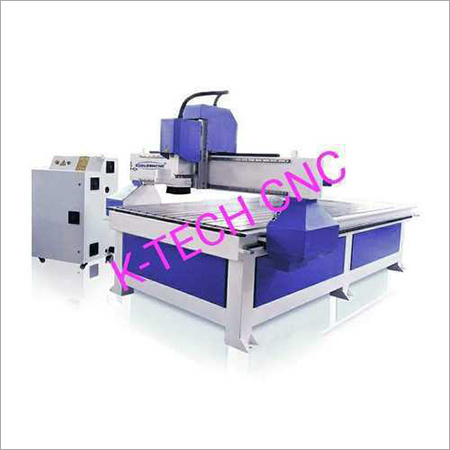

Wooden Carving Machine

Get a Price/Quote

MOQ : 1 Unit

Wooden Carving Machine Specification

Product Type
Wooden Carving Machine

General Use
Wood Engraving & Carving

Material
MS Body, Aluminum Table

Type
CNC Router

Capacity
Continuous Operation

Weight (kg)
1100 kg

Computerized
Yes

Automatic
Fully Automatic

PLC Control
Optional

Bar Feeder
No

Power Source
Electric

Power Consumption
2.2 kW

Rigidity
High

Voltage
220V

Motor
Step Motor

Table Size
1300 mm x 2500 mm

Spindle Speed
24000 rpm

Axial Choice
3 Axis

Dimension (L*W*H)
2000 mm x 3100 mm x 1700 mm

Feature
Heavy Duty, High Precision, Easy Operation

Color
Green & White

Lubrication Type
Automatic Lubrication

Supported File Formats
DXF, PLT, BMP, JPG, PNG

Environmental Compliance
RoHS Certified

Safety Feature
Emergency Stop Button

Tool Holder Type
Collet ER32

Resolution
0.01 mm

Drive System
Rack and Pinion

Noise Level
<75 dB

Operating Temperature
0°C to 40°C

Max Working Speed
12 m/min

Cooling System
Water Cooled Spindle

Compatible Software
ArtCAM, Type3, JD Paint

Wooden Carving Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
Unit

Delivery Time
12 Days

Sample Available
Yes

Main Domestic Market
All India

About Wooden Carving Machine

Our company is a well-known Manufacturer and Supplier of Wooden Carving Machine. The offered products are manufactured by using premium quality raw material and advance technology. The body of the machine is of thick steel tube and has high strength and rigidity required for heavy duty work. For the satisfaction, all the products are tested under various parameters to ensure the quality and functioning. We are offering the range of Carving Machine at a nominal rate. Moreover, customization is also available as per the client's requirement.

Features :

3D controller
User-friendly
Precise and reliable
Reasonable rate

Other details :

It can store 32 job files.
Memory can be enlarged to 2GB. 3000W spindle with large power.
Solid surface and plastic fabrication.

Standard Features:

The Machine body is of thick steel tube by precise welding tempering. It has high strength and rigidity required for heavy duty work. Hand held 3D controller with user-friendly operator interface, can store 32 job files, the memory can be enlarged to 2GB. 3000W spindle with large power.

X Y Z axis linear ball bearing profile rails, precise and reliable.
Can be made by order for special size and function.
Cabinet making, furniture production, wood working, aerospace, metalworking, sign making, marine and construction.
Solid surface and plastic fabrication.

Technical parameter :

Work table area (mm)	1300 X 3010
X, Y, Z Maximum working area (mm)	1300 X 2500 X 220
Cutting speed (mm/m)	30 mtr. / min
Max height for material (mm)	200
Max width for material (mm)	1350
X, Y, Z, Slide way	Linear ball bearing profile rails, X Y Rack and pinion Z Lead screw
Drive system	Advanced Micro Stepper
Drive motor	Advanced Micro Stepper
Spindle	3000W water-cooling
Spindle rotating speed (rpm)	6000-24000
Power consumption (W)	400w
Weight (kg)	900
Options	Vacuum table, Dust collector, Larger power spindle

Precision & High Rigidity Engineering

Equipped with a 0.01 mm resolution and a high rigidity frame, this CNC router delivers exceptional accuracy and consistency, even during intensive, continuous operation. The robust construction minimizes vibrations, ensuring every carving project meets professional standards.

User-Friendly Automation & Control

The fully automatic system, optional PLC control, and emergency stop button combine to create a safe and efficient workflow. Its compatibility with popular design software like ArtCAM, Type3, and JD Paint streamlines the process from design to final product, making it suitable for both seasoned professionals and newcomers.

Efficient & Sustainable Operation

Operating at less than 75 dB and certified RoHS-compliant, this machine is designed for both high output and environmental responsibility. The water-cooled spindle and automatic lubrication system enable long periods of uninterrupted work, while low power consumption supports energy savings.

FAQs of Wooden Carving Machine:

Q: How do I operate the Wooden Carving Machine for optimal results?

A: To achieve optimal performance, ensure your design file is prepared in one of the supported formats (DXF, PLT, BMP, JPG, PNG) and import it into compatible software like ArtCAM, Type3, or JD Paint. Secure your wood onto the 1300 x 2500 mm aluminum table, select the appropriate tool in the ER32 collet, and set operational parameters as required. The machines automatic functions and water-cooled spindle allow for continuous and easy operation.

Q: What is the benefit of the water-cooled spindle and automatic lubrication?

A: The water-cooled spindle prevents overheating, enabling the machine to maintain high performance through extended periods of use. Automatic lubrication further reduces maintenance needs and prolongs component lifespan, resulting in smoother carving and less downtime.

Q: When should I use the emergency stop button?

A: Utilize the emergency stop button immediately if you observe abnormal noise, movement, or danger during operation. This safety feature is designed to halt the machine instantly, protecting both operator and equipment.

Q: Where is the Wooden Carving Machine best installed?

A: Install the machine in a well-ventilated workshop or manufacturing environment that falls within the recommended operating temperature range (0C to 40C). The space should accommodate its dimensions (2000 mm x 3100 mm x 1700 mm) and allow for safe movement around the unit.

Q: What are the main advantages of using this CNC router versus manual carving?

A: This CNC router offers improved precision (0.01 mm resolution), speed (up to 12 m/min), and repeatability that surpasses manual carving. It automates complex designs, reduces human error, and handles continuous operation with easeboosting productivity and quality for professional woodworking projects.

Q: How does the automatic lubrication system function during operation?

A: The machines automatic lubrication system ensures that all critical moving components receive consistent and precise amounts of lubricant during operation. This feature minimizes wear, supports reliable performance, and reduces the need for routine manual maintenance.
